Spyder Pipe Guide Carbon Steel 12-24 | FlexPipe USA

The Spyder Pipe Guide in carbon steel is engineered for 12" to 24" pipe applications, delivering reliable lateral pipe restraint while accommodating axial movement from thermal expansion and contraction. Ideal for high-temperature piping systems, this pipe guide maintains precise alignment and prevents unwanted lateral deflection.

Carbon steel construction for durability and strength
Available in 6 pipe sizes (12", 14", 16", 18", 20", 24")
Insulation thickness options from 1" to 4" for thermal protection
Allows axial pipe movement while restricting lateral shift
Spyder-style design for superior load distribution
Buy American Act compliant
Engineered to ASME standards

FlexPipe USA's Spyder Pipe Guide suits industrial facilities, refineries, power plants, and manufacturing operations requiring precise pipe alignment. The pipe guide's proven design minimizes vibration, reduces stress on connections, and extends system life. With 21 size and insulation combinations available, you'll find the exact pipe guide configuration your project demands. Trust FlexPipe USA for quality piping accessories backed by American manufacturing expertise.

Carbon steel construction for durability and strength
Available in 6 pipe sizes (12", 14", 16", 18", 20", 24")
Insulation thickness options from 1" to 4" for thermal protection
Allows axial pipe movement while restricting lateral shift
Spyder-style design for superior load distribution
Buy American Act compliant
Engineered to ASME standards

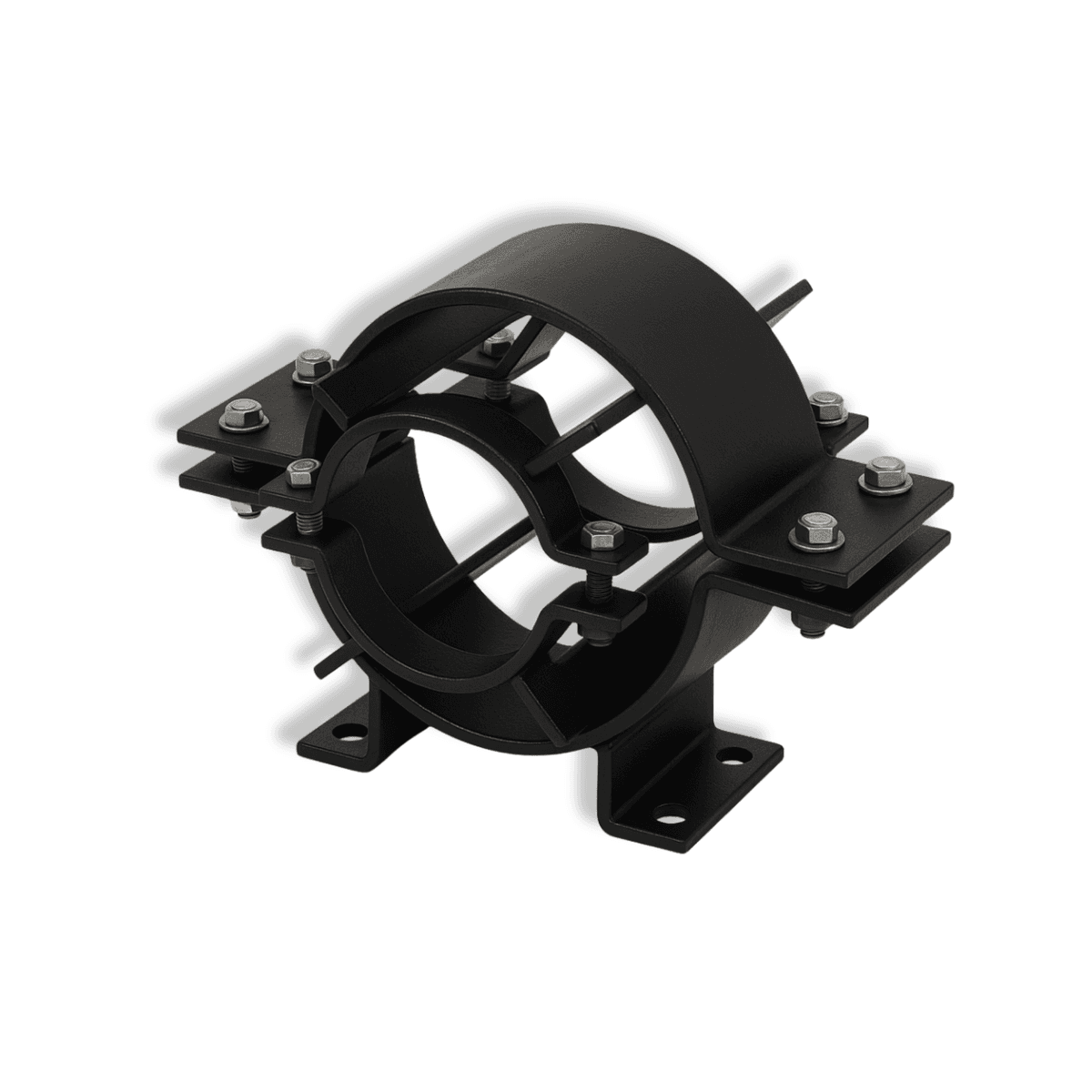

Spyder Pipe Guide - Carbon Steel - 12" to 24"
