The Spyder Pipe Guide - Copper Tube with Dielectric Shims is engineered to support and guide copper tubing and PEX piping while enabling controlled axial movement and maintaining precise system alignment. Ideal for HVAC, plumbing, and hydronic heating applications, this copper tube guide prevents unwanted lateral movement and vibration while allowing thermal expansion and contraction.

Dielectric shims isolate copper from incompatible metals, preventing galvanic corrosion
Copper tube construction provides excellent thermal conductivity and corrosion resistance
Available in 9 tube sizes (1/2" to 4") and 7 insulation thicknesses (1" to 4")
Spyder-style design accommodates multiple pipe configurations
Supports proper pipe alignment and reduces system stress
Buy American Act compliant for government and institutional projects
Meets industry standards for mechanical integrity and performance

FlexPipe USA supplies premium copper tube guides engineered for reliability in demanding industrial and commercial piping systems. With 36 size variants, our Spyder Pipe Guide delivers the exact fit and performance your application requires.

Dielectric shims isolate copper from incompatible metals, preventing galvanic corrosion
Copper tube construction provides excellent thermal conductivity and corrosion resistance
Available in 9 tube sizes (1/2" to 4") and 7 insulation thicknesses (1" to 4")
Spyder-style design accommodates multiple pipe configurations
Supports proper pipe alignment and reduces system stress
Buy American Act compliant for government and institutional projects
Meets industry standards for mechanical integrity and performance

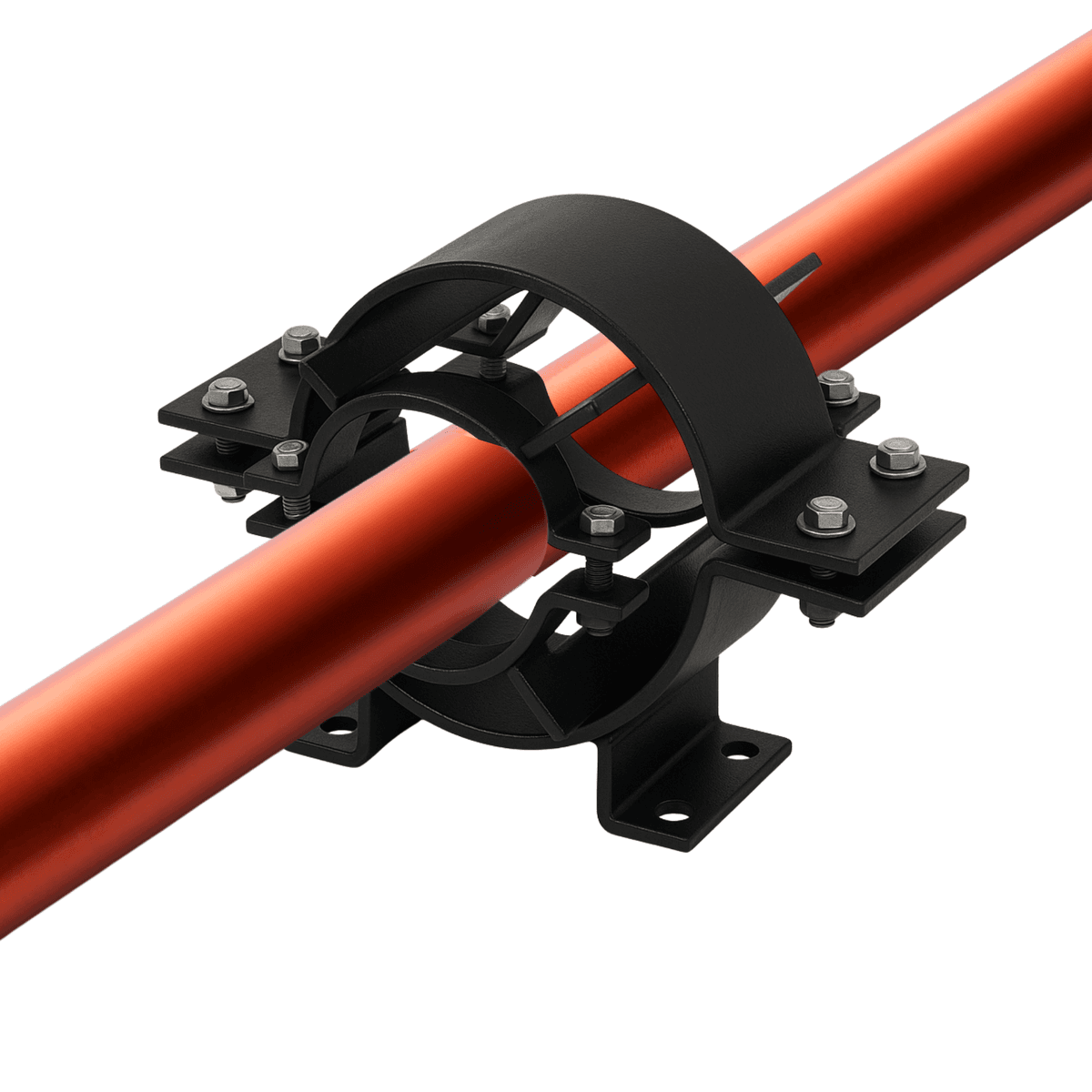

Spyder Pipe Guide - Copper Tube - With Dielectric Shims
