Pipe SlideFPL-PS-S437

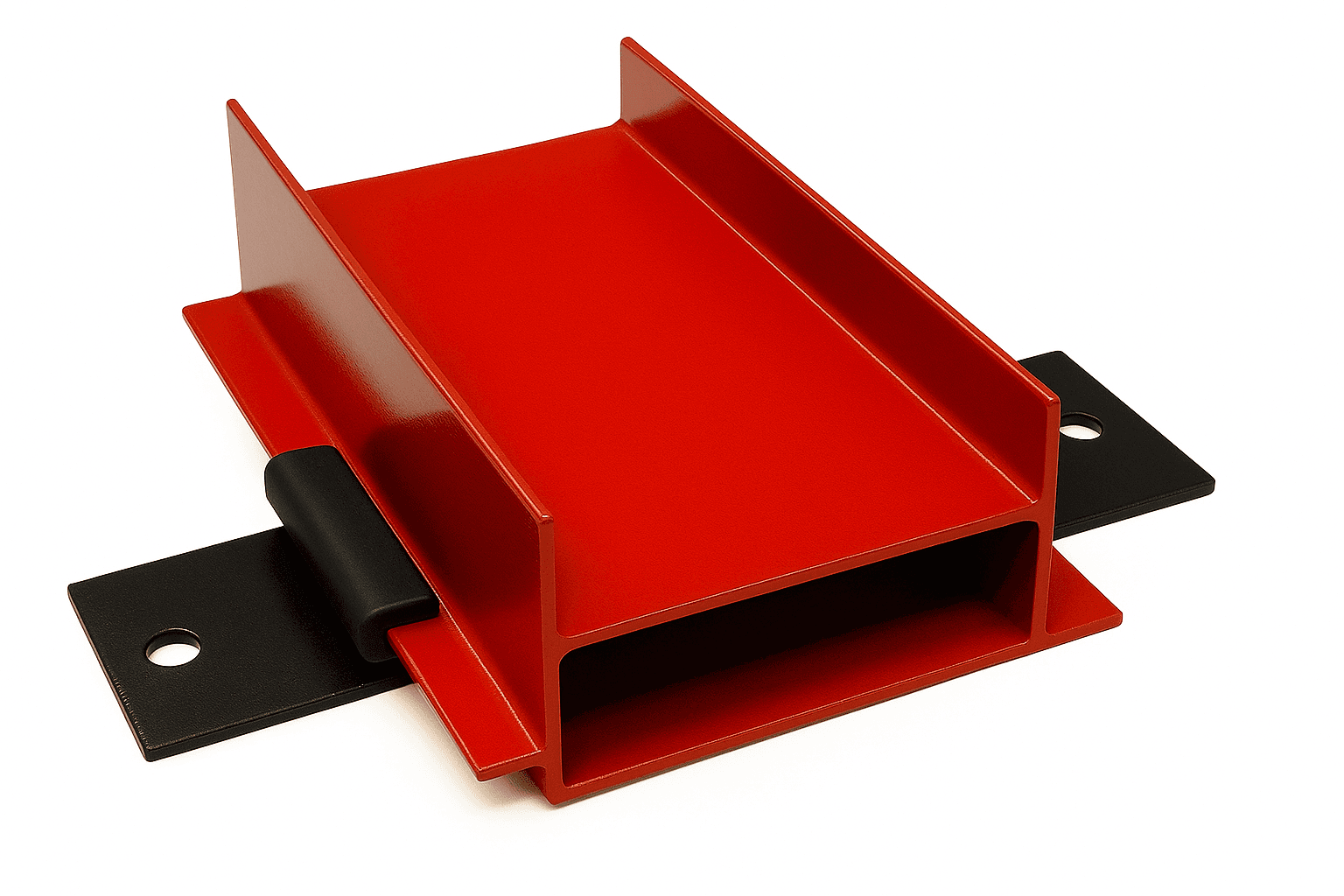

Series 437 Pipe Slide Support Assembly – 10" to 24" NPS
Series 437 heavy-duty pipe slide for 10"-24" NPS. Graphite composite bearing, low-friction axial movement. For large-bore steam, process, and district heating pipe runs.
Applications
- Large-Bore Steam Distribution
- District Heating/Cooling
- Industrial Process Lines
- Power Generation
- Refinery Piping
Starting at
$800.00
Price varies by size and configuration — contact for quote
Engineering Data
- Size Range
- 10" – 24" NPS
- Bearing Type
- Graphite Composite (low friction)
- Axial Travel
- 4" or 10" axial
- Construction
- Heavy-Duty Carbon Steel, Red Oxide Primer
- Mounting Type
- Type 1 Weld Base or Type 3 Bolt-Down
- Standards
- ASME B31.1, B31.3, MSS SP-58, Buy American Act
- Lead Time
- 5–10 Business Days
We respond to all RFQs within 1 business day
You May Also Need
Need a Custom Configuration?
Our engineers will specify the right product for your application — pressure, temperature, movement, end connections.
