Seismic V-Loop – Threaded NPT – 4″ Movement
Price range: $199.17 through $1,050.71
Multi-axis Seismic V-Loop with threaded NPT ends and nominal 4-inch movement class. Online configuration is limited to 0.50–2.00 in. NPS; 2.50 in. and larger threaded sizes require RFQ and engineering review. 321SS/304SS braided construction; ratings vary by size.
Description
The Seismic V-Loop with threaded NPT ends is a multi-axis flexible piping assembly for thermal expansion and seismic displacement. The controlled product specification identifies allowable motion in the X, Y, and Z axes and a nominal 4-inch movement class.
Construction uses 321 stainless steel corrugated hose with 304 stainless steel single braid, factory-welded components, a support bracket, and a drain plug. The maximum published operating temperature for this end configuration is 800°F. Working pressure, test pressure, dimensions, spring force, and available pipe sizes vary by selected size.
Use only after application review for pressure, temperature, media, movement direction, support geometry, anchors, guides, installation clearance, and applicable code requirements. NSF 372 lead-free certification is identified in the controlled product specification.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Pipe Size (NPS) | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Related products
-

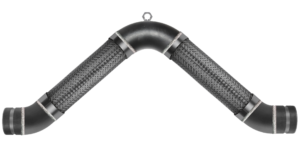

Seismic V-Loop – Grooved – 4″ Movement
Price range: $386.58 through $5,582.40Request Engineering Quote This product has multiple variants. The options may be chosen on the product page -

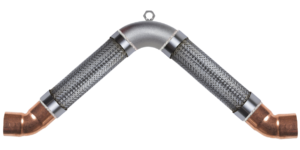

Seismic V-Loop – Copper Sweat – 4″ Movement
Price range: $247.05 through $2,822.71Request Engineering Quote This product has multiple variants. The options may be chosen on the product page -

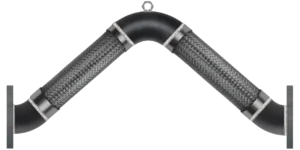

Seismic V-Loop – 150# Flanged – 4″ Movement
Price range: $445.88 through $6,189.14Request Engineering Quote This product has multiple variants. The options may be chosen on the product page -

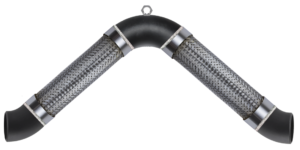

Seismic V-Loop – Weld End – 4″ Movement
