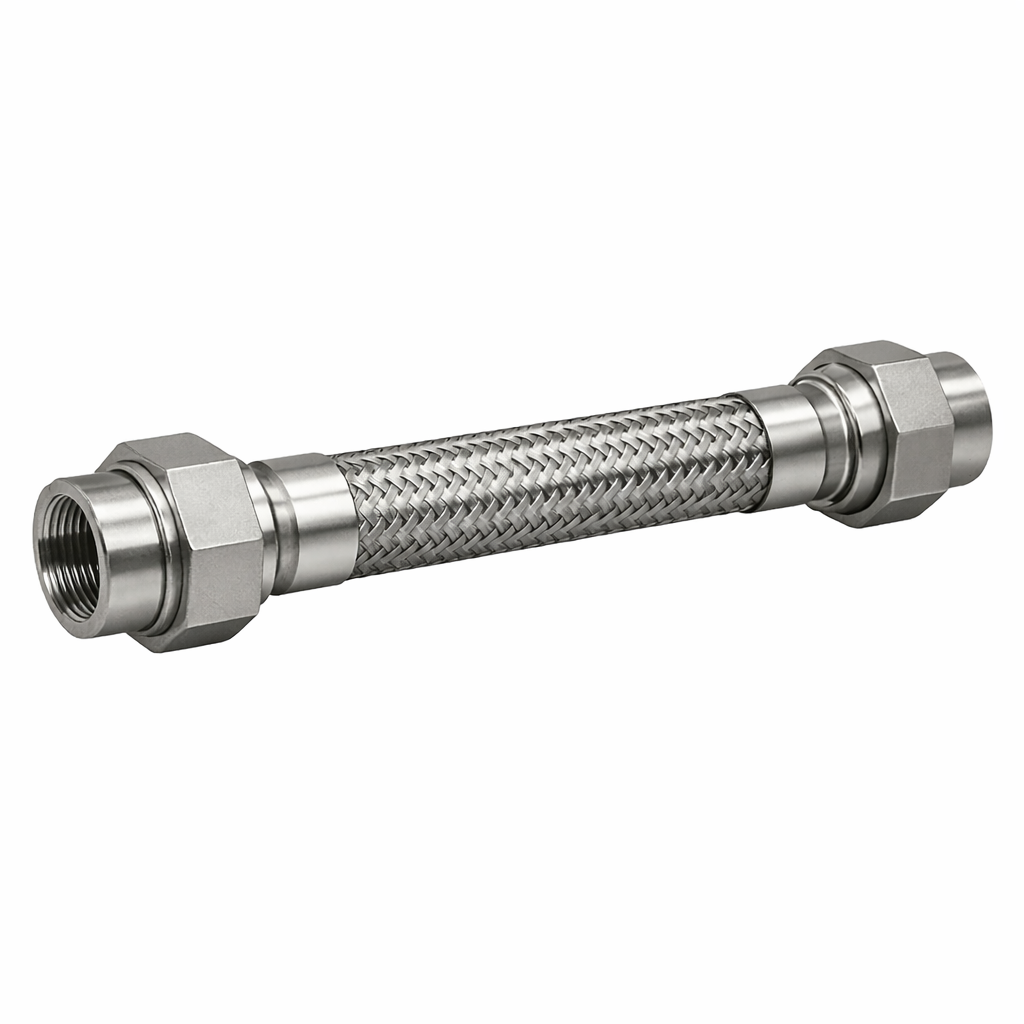

316 stainless steel braided metal hose assembly with Female NPT union connections on both ends
Stainless steel Female NPT union fitting reference for flexible metal hose assemblies

316SS Hose / 316SS Braid — Female NPT Union x Female NPT Union

Price range: $52.00 through $231.00

316 stainless steel corrugated metal hose with 316 stainless steel braid and Female NPT Union x Female NPT Union ends. This product is temporarily RFQ-only because the published variation records do not contain authoritative Overall Length mappings. Submit hose ID, braid count, required OAL, quantity, pressure, temperature, and service for review.

SKU: FP-MH-316-316-FNPTU-FNPTU Categories: , Tags: , , , Brand:

Description

The 316SS Hose / 316SS Braid – Female NPT Union x Female NPT Union assembly is engineered for corrosive industrial service requiring removable, serviceable threaded connections. The 316 stainless steel corrugated hose provides flexibility, while the 316 stainless steel braid reinforces the pressure boundary.

Key Features

  • 316 stainless steel corrugated hose core
  • 316 stainless steel braid reinforcement
  • Female NPT union connections on both ends
  • Single- or double-braid options where available
  • Online hose IDs from ½" through 2"; larger threaded sizes require RFQ and engineering review
  • Overall length from 12"–240" in 0.5" increments

Applications

Typical uses include HVAC and hydronic piping, process systems, chemical service, pump and equipment connections, vibration isolation, and installations requiring removable threaded unions.

Engineering Review

Final suitability depends on hose ID, braid count, operating pressure, temperature, media, movement, minimum bend radius, thread compatibility, support conditions, and installation geometry. Do not install the assembly under torsion.

Ordering Notes

Select hose ID, braid count, and overall length. Every order is reviewed before fabrication. Alternate materials, special cleaning, pressure testing, tagging, material certificates, and documentation packages are available through RFQ.

Engineering Calculators & Selection Tools

Use calculator outputs as preliminary selection inputs only. The 316SS/316SS product requires validated product-specific pressure data before any pressure-derating result can be applied to the assembly.

Additional information

WeightN/A
DimensionsN/A
Hose ID

0.50 in., 0.75 in., 1.00 in., 1.25 in., 1.50 in., 2.00 in.

Braid Count

,

Overall Length

12.00 in., 18.00 in., 24.00 in., 36.00 in., 48.00 in., 60.00 in., 72.00 in., 96.00 in.

End Connection

Female NPT Union x Female NPT Union
