150# Plate Flanged Metal Hose – Non-Standard OAL – Custom Quote
Engineered-to-order assembly. No online checkout — submit an RFQ with the required size, overall length, service conditions, quantity, and drawings. Flex Pipe USA reviews the configuration and returns application-specific pricing and rating information.
Description
The 150# Plate Flanged Metal Hose – Non-Standard OAL – Custom Quote is the RFQ path for plate-flanged assemblies that fall outside the supported online overall-length range or require application-specific review. Typical cases include short face-to-face dimensions, unusual intermediate lengths, retrofit replacements, or service conditions that require confirmation before fabrication.
The typical construction basis is 321 stainless steel corrugated hose, 304 stainless steel braid, and carbon steel Class 150 plate flanges with ASME B16.5 drilling. Final construction, allowable working pressure, materials, overall length, and documentation requirements are confirmed for the quoted configuration.
Engineering Review Inputs
- Nominal hose size
- Required face-to-face overall length
- Operating and design pressure
- Operating and design temperature
- Media / service
- Required movement and installation geometry
- Braid requirement
- Flange material and configuration
- Applicable piping-code or project-specification requirements
- Testing, material records, inspection, or documentation requirements
Configuration Basis
- Hose: 321 stainless steel corrugated metal hose, subject to quoted size and service requirements
- Braid: 304 stainless steel; braid construction is selected for the required service
- Flanges: carbon steel Class 150 plate-flange construction unless an alternate material or configuration is quoted
- Overall length: fabricated to the accepted quoted dimension after engineering and manufacturing review
- Working pressure: confirmed for the quoted complete assembly after review of hose, braid, fittings, temperature, media, movement, and installation conditions
Typical Applications
Typical applications include retrofit pump connections, equipment connections with fixed face-to-face dimensions, skid packages, mechanical-room piping, and replacement assemblies where a standard supported OAL does not fit. Media compatibility and service suitability must be confirmed for the complete assembly.
Request a Quote
Provide the nominal size, exact required OAL, pressure, temperature, media, movement, quantity, and target delivery requirement. Upload a drawing or clear photos of the existing assembly when available so the configuration can be reviewed before quotation.
Submit an RFQ with drawing upload, call 763-200-2287, or email [email protected].
Standard Configurable Alternative
For supported standard configurations and overall lengths, use the 321SS braided metal hose with carbon steel Class 150 plate flanges. Browse Standard / Quick Ship metal hose assemblies or visit the Engineering Hub.
Technical Resources
Related products
-

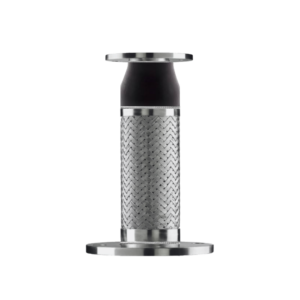

Concentric Reducing Metal Hose Pump Connector – 150# Flanged
